EXFE211-35L3 - SNR

EXFE211-35L3

Grey cast housing, radial insert ball bearing with eccentric locking collar, triple lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX211-35G2L3 - FE211
PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR

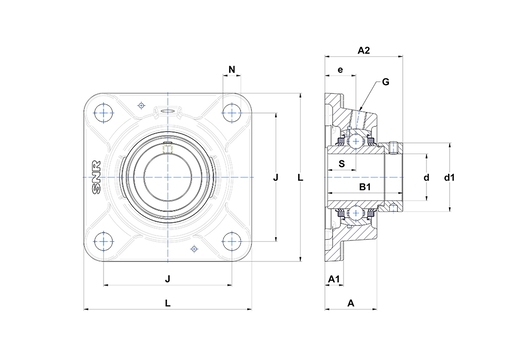

A - Housing height48,5 mm
A1 - Housing foot height / flange height15 mm
A2 - Total height from mounting surface74,6 mm
B - Width of Inner Ring55,4 mm
B1 - Overall width Inner Ring71,3 mm
d - Shaft diameter55,563 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve74,5 mm
e - Distance mounting surface to bearing center31 mm
G - Grease fittingR1/8"
J - Mounting holes distance130 mm
L - Housing width / diameter162 mm
N - Mounting hole dimension18 mm
S - Distance front side/bearing centre27,7 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating43,55 kN
C0 - Static load rating29,2 kN
Operating temperature min.-20 °C
Operating temperature max.100 °C
OTHER FEATURES
Mass3,9 kg
Recommended tightening torque for set screw16,8 N-m
