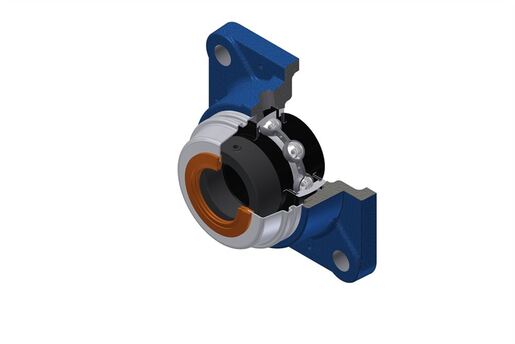

Grey cast housing, radial insert ball bearing with eccentric locking collar, labyrinth seal, for high-temp. applications.
In the figure, flanged bearing units are presented with open cover. The product you have chosen is equipped with closed cover.
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

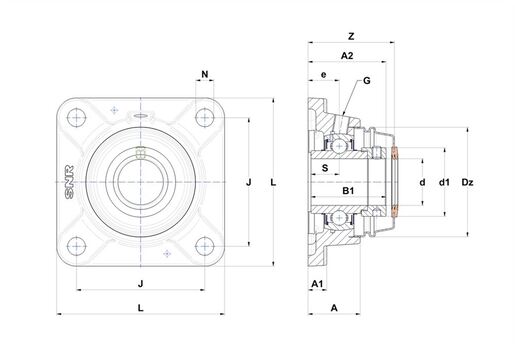

|Housing height (A)||56 mm|
|Housing foot height / flange height (A1)||18 mm|
|Total height (Housing + Insert) from mouting surface (A2)||89,6 mm|
|Width of IR (B)||68,2 mm|
|Overall width IR incl. eccent. locking collar/adapt. sleeve(B1)||85,7 mm|
|Shaft dia (d)||65 mm|
|Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1)||86 mm|
|Outer dia of cover (Dz)||132 mm|
|Distance mounting surface - bearing center (e)||38 mm|
|Grease fitting (G)||R1/8"|
|Mounting hole distance (J)||150 mm|
|Housing width / dia (L)||188 mm|
|Mounting hole dimension (N)||18 mm|
|Dist. cent. of raceway to face IR on side opp. lock. device (S)||34,1 mm|
|width over covers||95 mm|
|Dynamic load rating (C)||57,2 kN|
|Static load rating (C0)||40 kN|
|Operating temperature min.||-20 °C|
|Operating temperature max.||200 °C|
|Recommended tightening torque for set screw [Nm]||22 N-m|
