EXFLE214-43 - SNR

EXFLE214-43

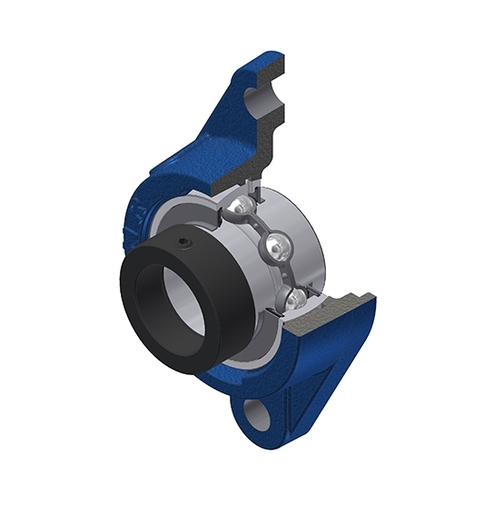

Grey cast housing, radial insert ball bearing with eccentric locking collar, seal with slinger

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX214-43G2
PLEASE LOGIN to add products to your basket
Contact us
Specs

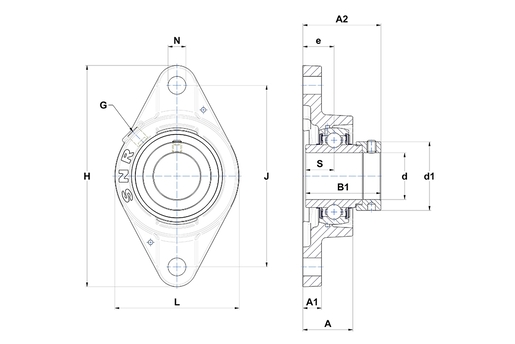

PRODUCT DIMENSIONS

Housing height (A) 57 mm
Housing foot height / flange height (A1) 18 mm
Total height (Housing + Insert) from mouting surface (A2) 89,6 mm
Width of IR (B) 68,2 mm
Overall width IR incl. eccent. locking collar/adapt. sleeve(B1) 85,7 mm
Shaft dia (d) 68,263 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 96,8 mm
Distance mounting surface - bearing center (e) 38 mm
Grease fitting (G) System.Collections.Generic.List`1[System.String]
Housing length, width or diameter (H) 258 mm
Mounting hole distance (J) 216 mm
Housing width / dia (L) 160 mm
Mounting hole dimension (N) System.Collections.Generic.List`1[System.String]
Dist. cent. of raceway to face IR on side opp. lock. device (S) 34,1 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 62 kN
Static load rating (C0) 45 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 6,02 kg
Recommended tightening torque for set screw [Nm] 16,8 N-m
