EXP206-18T20 - SNR

EXP206-18T20

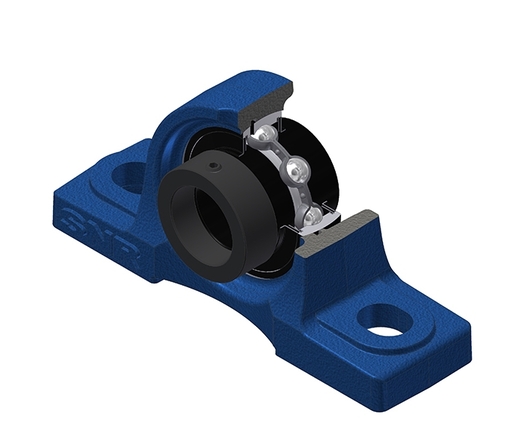

Grey cast housing, radial insert ball bearing with eccentric locking collar, labyrinth seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX206-18G2T20 - P206
PLEASE LOGIN to add products to your basket
Contact us

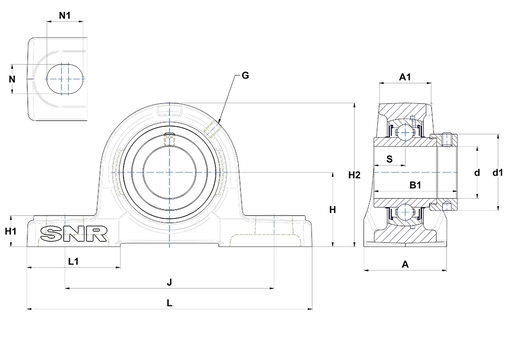

PRODUCT DEFINITION
BrandSNR
A - Housing width48 mm
A1 - Housing top width30 mm
B - Width of Inner Ring36,4 mm
d - Shaft diameter28,575 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve44,1 mm
G - Grease fittingM6x1
H - Distance mounting base to centerline spheric. seating diam.42,9 mm
H1 - Housing foot height18 mm
H2 - Housing height83 mm
J - Mounting holes distance121 mm
L - Housing length165 mm
L1 - Housing foot length54 mm
N - Mounting hole dimension17 mm
N1 - Mounting hole length21 mm
S - Distance front side/bearing centre18,2 mm
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load rating19,5 kN
C0 - Static load rating11,2 kN
Operating temperature min.-20 °C
Operating temperature max.200 °C
OTHER FEATURES
Mass1,47 kg
Recommended tightening torque for set screw8 N-m
