EXP210L3CCE - SNR

EXP210L3CCE

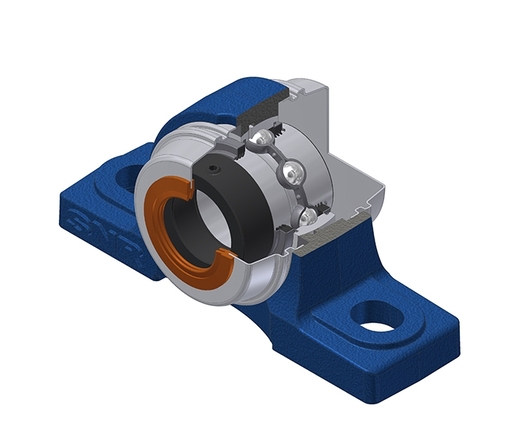

Grey cast housing, radial insert ball bearing with eccentric locking collar, triple lip seal

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - EX210G2L3 - P210N - SCCE210 - SCOE210-50
PLEASE LOGIN to add products to your basket
Contact us
Specs

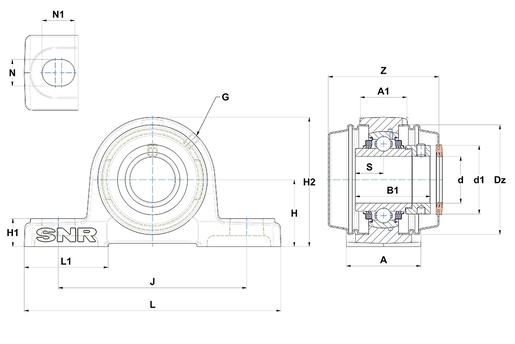

PRODUCT DIMENSIONS

Housing width (A) 60 mm
Housing top width (A1) 39 mm
Width of IR (B) 49,2 mm
Shaft dia (d) 50 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 67,2 mm
Outer dia of cover (Dz) 100 mm
Grease fitting (G) M6x1
Distance mounting base to centerline spheric. seating diam. (H) 57,2 mm
Housing foot height (H1) 22 mm
Housing height (H2) 114 mm
Mounting hole distance (J) 159 mm
Housing length (L) 206 mm
Housing foot length (L1) 65 mm
Mounting hole dimension (N) 20 mm
Mounting hole length (N1) 25 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 24,6 mm
width over covers 91,4 mm
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (C) 35,1 kN
Static load rating (C0) 23,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES

Mass 3,27 kg
Recommended tightening torque for set screw [Nm] 11,5 N-m
