EXP210NT20 - SNR

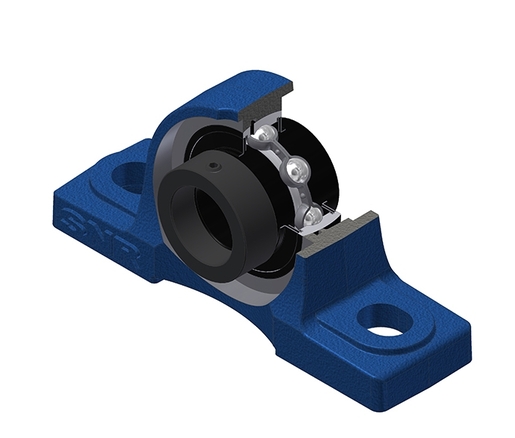

Grey cast housing, radial insert ball bearing with eccentric locking collar, labyrinth seal, for high-temp. applications

Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.


Technical datasheet

KitThis kit contains the following reference(s) - EX210G2T20 - P210N
PLEASE LOGIN to add products to your basket
Contact us

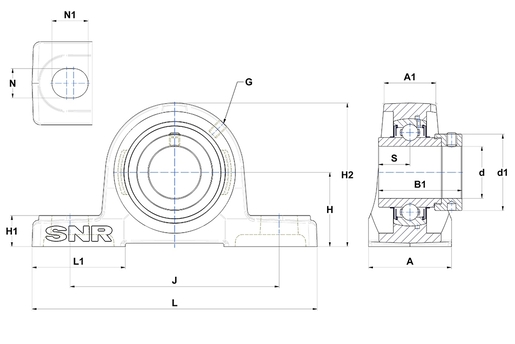

Housing width (A) 60 mm
Housing top width (A1) 39 mm
Width of IR (B) 49,2 mm
Shaft dia (d) 50 mm
Outer dia of eccent. Lock. collar / nut of adapter sleeve (d1) 67,2 mm
Grease fitting (G) M6x1
Distance mounting base to centerline spheric. seating diam. (H) 57,2 mm
Housing foot height (H1) 22 mm
Housing height (H2) 114 mm
Mounting hole distance (J) 159 mm
Housing length (L) 206 mm
Housing foot length (L1) 65 mm
Mounting hole dimension (N) 20 mm
Mounting hole length (N1) 25 mm
Dist. cent. of raceway to face IR on side opp. lock. device (S) 24,6 mm
Brand SNR
Product classification image


Dynamic load rating (C) 35,1 kN
Static load rating (C0) 23,2 kN
Operating temperature min. -20 °C
Operating temperature max. 200 °C


Mass 3,01 kg
Recommended tightening torque for set screw [Nm] 11,5 N-m
