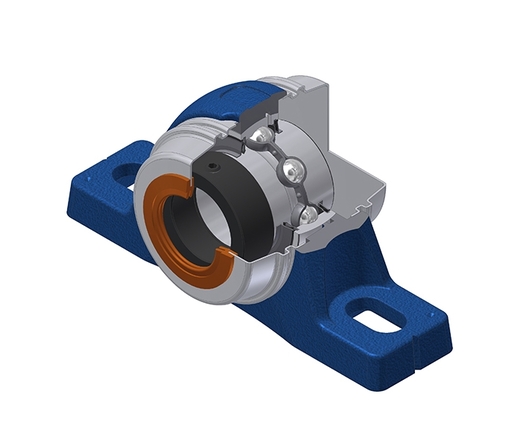

Grey cast housing, radial insert ball bearing with eccentric locking collar, L4 sealing system.

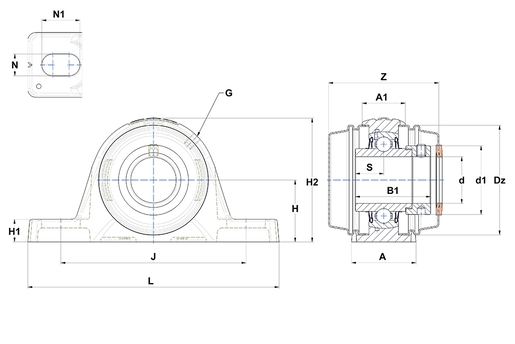

In the figure, bearing units are presented with one open and one closed cover. The product you have chosen is equipped with two open covers.
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.
|A - Housing width||55 mm|
|A1 - Housing top width||36 mm|
|B - Width of Inner Ring||49,2 mm|
|d - Shaft diameter||50 mm|
|d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve||67,2 mm|
|Dz - Outer diameter of cover||100 mm|
|G - Grease fitting||M6x1|
|H - Distance mounting base to centerline spheric. seating diam.||55,6 mm|
|H1 - Housing foot height||19,3 mm|
|H2 - Housing height||114 mm|
|J - Mounting holes distance||164 mm|
|L - Housing length||214 mm|
|N - Mounting hole dimension||14 mm|
|N1 - Mounting hole length||27 mm|
|S - Distance front side/bearing centre||24,6 mm|
|Z - Width over covers||92,5 mm|
|C - Dynamic load rating||35,1 kN|
|C0 - Static load rating||23,2 kN|
|Operating temperature min.||-20 °C|
|Operating temperature max.||100 °C|
|Recommended tightening torque for set screw||11,5 N-m|
