GS81222 - NTN

GS81222

Needle roller bearing, thrust needle roller bearing, outer ring

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

D - Outside diameter of support washer OR - GS 160 mm
D1 - Bore diameter bearing washer OR - GS 113 mm
B - Ring thickness 11,5 mm
rs - Min fillet radius 1,1 mm
Bearing ring (outer ring) GS mass 0,88 kg
Brand NTN

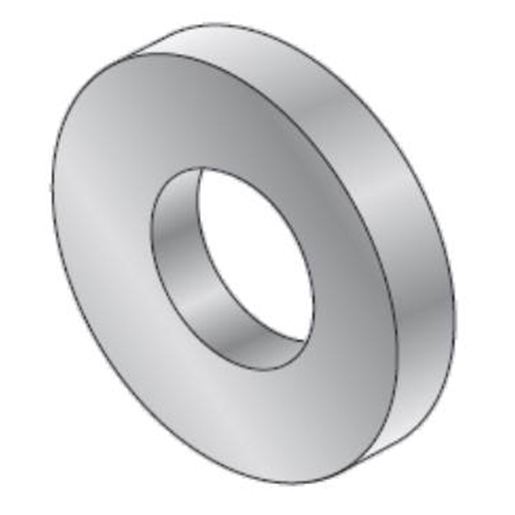

Product classification image

PRODUCT PERFORMANCE

Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
