H320 - SNR

H320

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - KM20 - MB20
PLEASE LOGIN to add products to your basket
Contact us
Specs

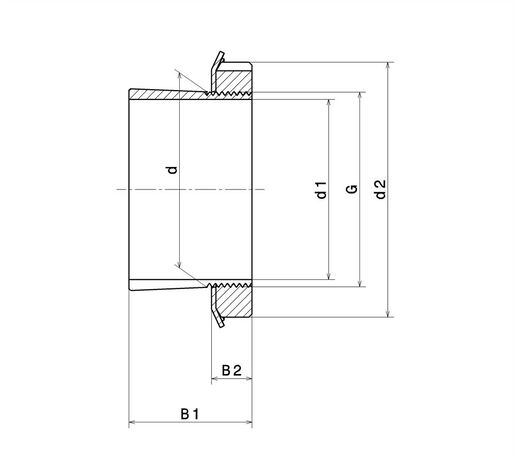

PRODUCT DIMENSIONS

Sleeve bore diameter (d1) 90 mm
Internal diameter (d) 100 mm
Outer diameter of locknut (d2) 130 mm
Sleeve length (B1) 71 mm
Distance between the bearing face and nut rear face (B2) 20 mm
Thread designation (G) M100X2
Associated bearing 21320, 22220, 1320, 2220
Bore Tapered 1:12
Mass 1,723 kg
Brand SNR
