HK4518L/3AS - NTN

HK4518L/3AS

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

PRODUCT DEFINITION

Fw - Under rollers diameter 45 mm
D - External diameter 52 mm
C1 - Width of the drawn cup L 18 mm
C3 - Max drawn cup closed end thickness LL 2,7 mm

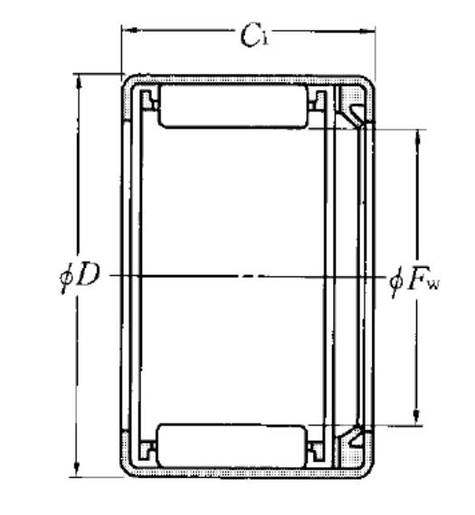

Product classification image

TECHNICAL CHARACTERISTICS

Lubrication hole on outer ring No
Inner ring reference IR40X45X20
Mass 0,054 kg
Brand NTN

PRODUCT PERFORMANCE

Cr - Dynamic load rating 21,6 kN
C0r - Static load rating 43 kN
Nlim - Grease lubrication limit speed 3600 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C
