Product information

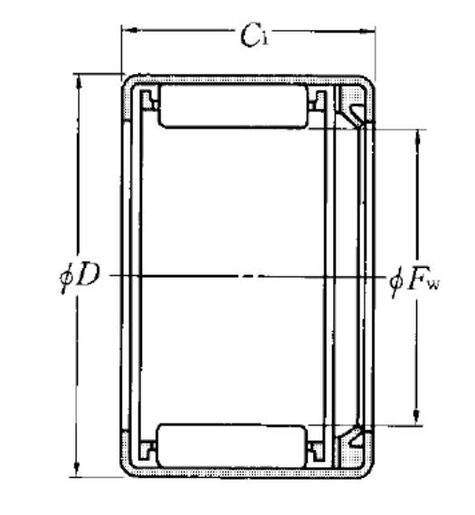

| PRODUCT DEFINITION | |
|---|---|
| Brand | NTN |
| Fw - Under rollers diameter | 8 mm |
| D - External diameter | 15 mm |
| C1 - Width of the drawn cup L | 12 mm |
| Lubrication hole on outer ring | Non/No |
| Inner ring reference | IR5X8X16 |
| Mass | 0,007 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| Cr - Dynamic load rating | 3,8 kN |
| C0r - Static load rating | 2,87 kN |
| N lim - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 100 °C |
