HMK0820T2 - NTN

HMK0820T2

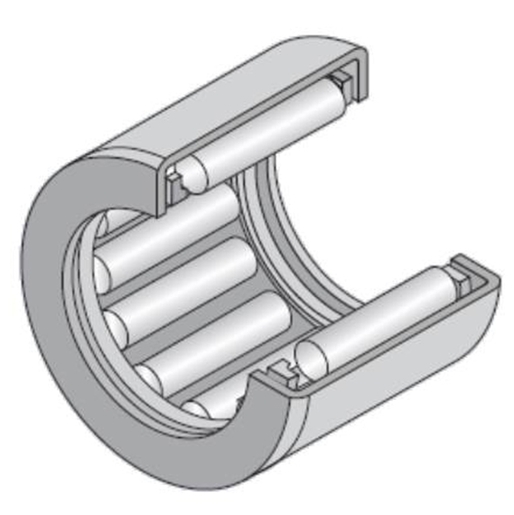

Needle roller bearing, drawn cup, open end, heavy load

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

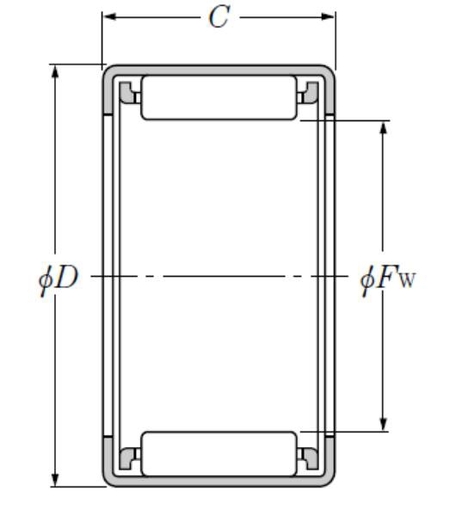

PRODUCT DEFINITION

Fw - Under rollers diameter 8 mm
D - External diameter 15 mm
C - Width of bearing, drawn cup or outer ring 20 mm
Product classification image

TECHNICAL CHARACTERISTICS

Lubrication hole on outer ring No
Inner ring reference No
Mass 0,013 kg
Brand NTN

PRODUCT PERFORMANCE

Cr - Dynamic load rating 9,05 kN
C0r - Static load rating 8,75 kN
Nlim - Grease lubrication limit speed 20000 tr/min
Nlim - Oil lubrication limit speed 30000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C
