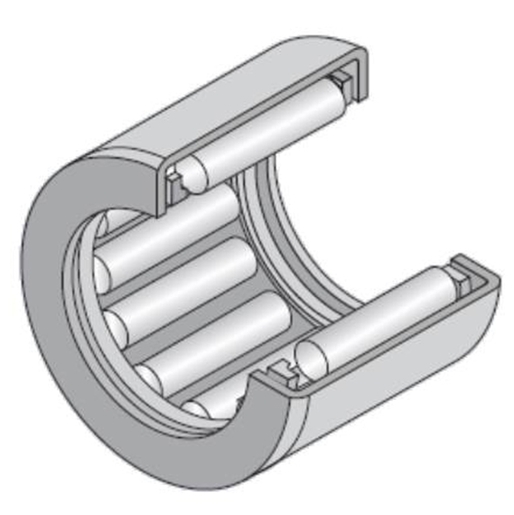

Needle roller bearing, drawn cup, open end, heavy load
CAD file
Technical datasheet
Specs

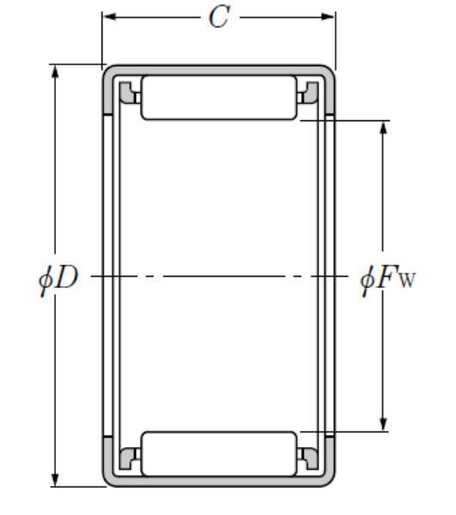

PRODUCT DIMENSIONS | |
|---|---|
| Under rollers diameter (Fw) | 10 mm |
| External diameter D | 17 mm |
| Width of bearing, drawn cup or outer ring (C) | 15 mm |
| Lubrication hole on outer ring | No |
| Inner ring reference | IR7X10X16 |
| Mass | 0,012 kg |
| Brand | NTN |
PRODUCT PERFORMANCE | |
|---|---|
| Dynamic load rating (Cr) | 7,4 kN |
| Static load rating (C0r) | 6,95 kN |
| Nlim (grease) | 16000 tr/min |
| Nlim (oil) | 24000 tr/min |
| Min operating temperature, Tmin | -20 °C |
| Max operating temperature, Tmax | 120 °C |
| Characteristic cage frequency, FTF | 0,4 Hz |
| Characteristic rolling element frequency, BSF | 4,8 Hz |
| Characteristic outer ring frequency, BPF0 | 3,2 Hz |
| Characteristic inner ring frequency, BPFI | 4,8 Hz |
