HMK1416V10 - NTN

HMK1416V10

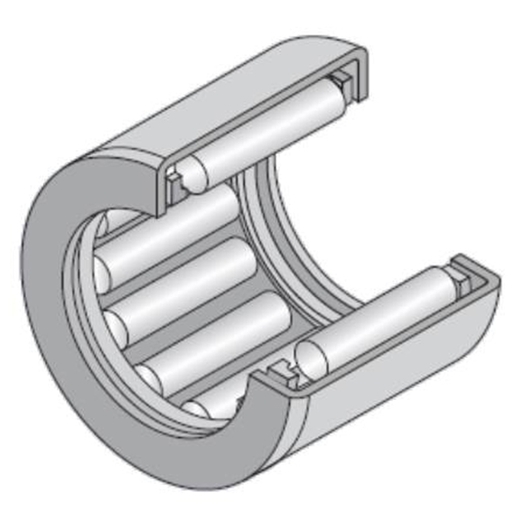

Needle roller bearing, drawn cup, open end, heavy load

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

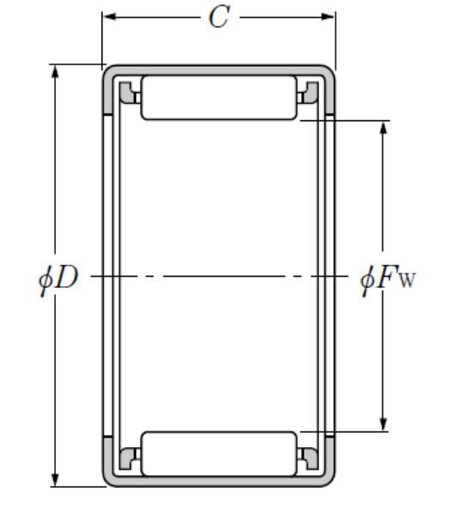

PRODUCT DIMENSIONS

Under rollers diameter (Fw) 14 mm
External diameter D 22 mm
Width of bearing, drawn cup or outer ring (C) 16 mm
Lubrication hole on outer ring No
Inner ring reference IR10X14X20
Mass 0,019 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (Cr) 11,5 kN
Static load rating (C0r) 12 kN
Nlim (grease) 11000 tr/min
Nlim (oil) 17000 tr/min
Min operating temperature, Tmin -20 °C
Max operating temperature, Tmax 120 °C
Characteristic cage frequency, FTF 0,412 Hz
Characteristic rolling element frequency, BSF 5,49 Hz
Characteristic outer ring frequency, BPF0 4,118 Hz
Characteristic inner ring frequency, BPFI 5,882 Hz
