HMK1626CLLT/3AS - NTN

HMK1626CLLT/3AS

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

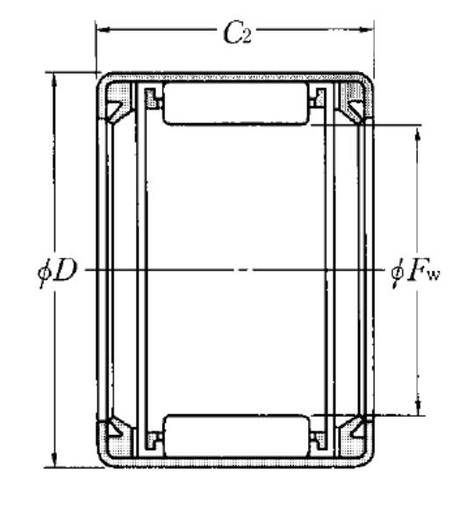

PRODUCT DIMENSIONS

Under rollers diameter (Fw) 16 mm
External diameter D 24 mm
C2 26 mm
Lubrication hole on outer ring No
Mass 0,029 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (Cr) 15,6 kN
Static load rating (C0r) 18,2 kN
Nlim (grease) 10000 tr/min
Min operating temperature, Tmin -20 °C
Max operating temperature, Tmax 100 °C
Characteristic cage frequency, FTF 0,421 Hz
Characteristic rolling element frequency, BSF 6,175 Hz
Characteristic outer ring frequency, BPF0 4,632 Hz
Characteristic inner ring frequency, BPFI 6,368 Hz
