HMK1721LL/3AS - NTN

HMK1721LL/3AS

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

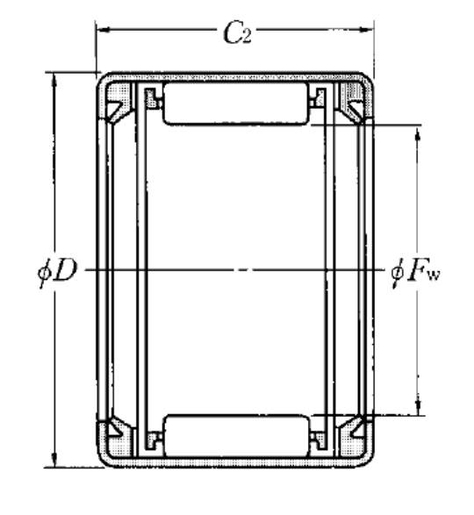

PRODUCT DIMENSIONS

Under rollers diameter (Fw) 17 mm
External diameter D 24 mm
C2 21 mm
Lubrication hole on outer ring No
Inner ring reference IR12X17X25.5
Mass 0,02 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (Cr) 12,1 kN
Static load rating (C0r) 15 kN
Nlim (grease) 9500 tr/min
Min operating temperature, Tmin -20 °C
Max operating temperature, Tmax 100 °C
Characteristic cage frequency, FTF 0,436 Hz
Characteristic rolling element frequency, BSF 7,672 Hz
Characteristic outer ring frequency, BPF0 6,538 Hz
Characteristic inner ring frequency, BPFI 8,462 Hz
