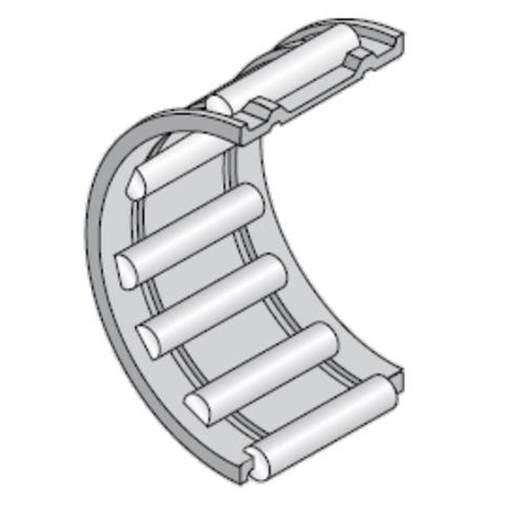

Needle roller bearing, cage assembly, steel cage
Log in
To add this product to your basketDocumentation
Product information
| PRODUCT DEFINITION | |
|---|---|
| Brand | NTN |

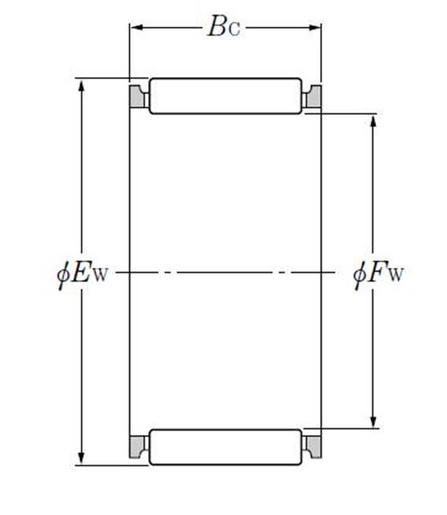

| Fw - Under rollers diameter | 18 mm |
| Ew - Upper rollers diameter | 25 mm |
| Bc - Cage Width | 17 mm |
| Mass | 0,021 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| Cr - Dynamic load rating | 18 kN |
| C0r - Static load rating | 20,4 kN |
| N lim - Grease lubrication limit speed | 14000 tr/min |
| N lim - Oil lubrication limit speed | 21000 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
| ABUTMENT | |
|---|---|
| b - Raceway width | 17 mm |
