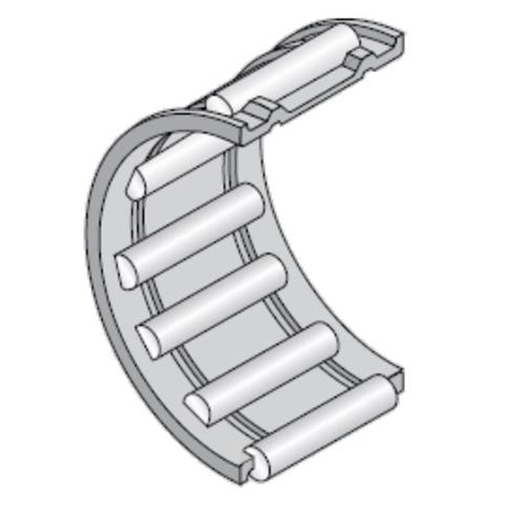

Needle roller bearing, cage assembly, steel cage
Downloads3D file
Technical datasheet

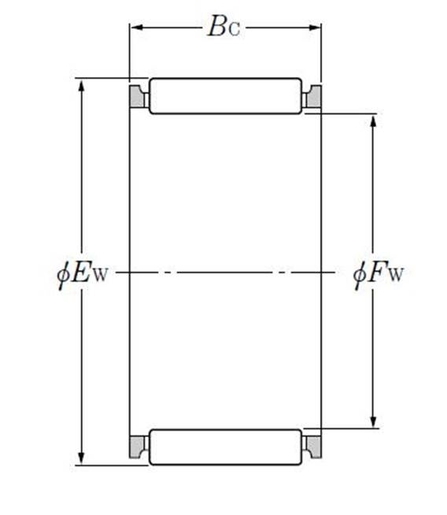

Contact usSpecsPRODUCT DEFINITION | | Fw - Under rollers diameter | 32 mm |
| Ew - Upper rollers diameter | 37 mm |
| Bc - Cage Width | 27 mm |
TECHNICAL CHARACTERISTICS | | Mass | 0,037 kg |
| Brand | NTN |
PRODUCT PERFORMANCE | | Cr - Dynamic load rating | 29,6 kN |
| C0r - Static load rating | 57,5 kN |
| Nlim - Grease lubrication limit speed | 8500 tr/min |
| Nlim - Oil lubrication limit speed | 13000 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
ABUTMENT | | b - Raceway width | 27 mm |
