K35X40X26ZW - NTN

K35X40X26ZW

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandNTN
Fw - Under rollers diameter35 mm
Ew - Upper rollers diameter40 mm
Bc - Cage Width26 mm
Mass0,037 kg

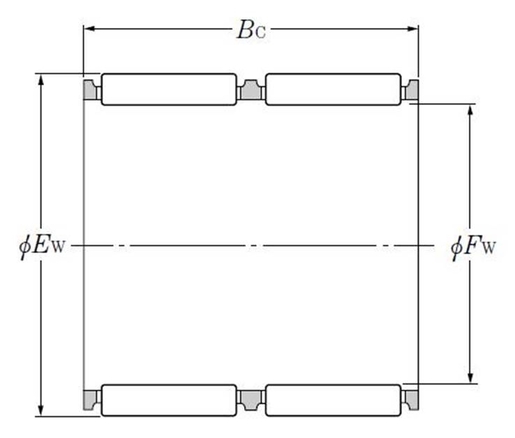

Product classification image
PRODUCT PERFORMANCE
Cr - Dynamic load rating44 kN
C0r - Static load rating100 kN
Nlim - Grease lubrication limit speed7500 tr/min
Nlim - Oil lubrication limit speed11000 tr/min
Tmin - Min operating temperature-20 °C
Tmax - Max operating temperature120 °C
ABUTMENT
b - Raceway width26 mm
