K50X58X25 - NTN

K50X58X25

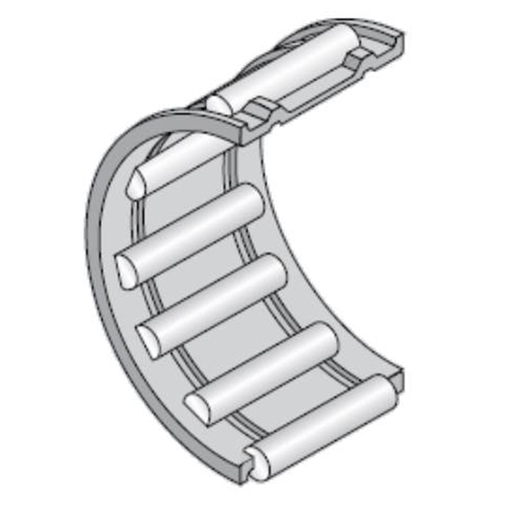

Needle roller bearing, cage assembly, steel cage

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

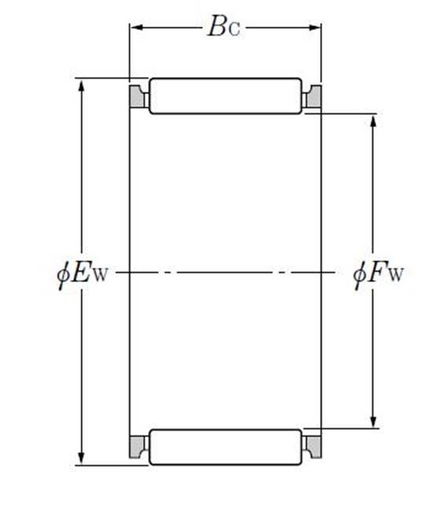

PRODUCT DEFINITION

Fw - Under rollers diameter 50 mm
Ew - Upper rollers diameter 58 mm
Bc - Cage Width 25 mm
Product classification image

TECHNICAL CHARACTERISTICS

Mass 0,081 kg
Brand NTN

PRODUCT PERFORMANCE

Cr - Dynamic load rating 48,5 kN
C0r - Static load rating 90 kN
Nlim - Grease lubrication limit speed 5500 tr/min
Nlim - Oil lubrication limit speed 8000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C

ABUTMENT

b - Raceway width 25 mm
