K81128 - NTN

K81128

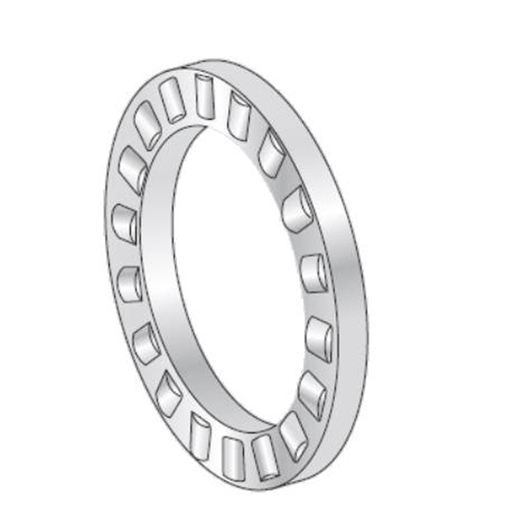

Needle roller bearing, thrust cylindrical roller bearing, cage assembly, K811 series

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandNTN
Dw - Rolling element diameter12 mm
Dc1 - Roller cage bore diameter140 mm
Dc - Roller cage outer diameter180 mm
Bearing ring (inner ring) WSWS81128
Bearing ring (outer ring) GSGS81128
Ea - Rollers reference outer diameter172,5 mm
Eb - Rollers reference inner diameter147,8 mm
Cage assembly mass0,45 kg

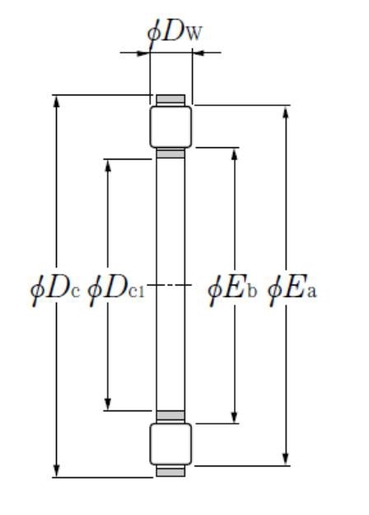

Product classification image
PRODUCT PERFORMANCE
Ca - Dynamic axial load rating206 kN
C0a - Static axial load rating815 kN
Cua - Limit axial load rating86 kN
Nlim - Grease lubrication limit speed380 tr/min
Nlim - Oil lubrication limit speed1500 tr/min
Tmin - Min operating temperature-20 °C
Tmax - Max operating temperature120 °C
