KB689.01 - SNR

KB689.01

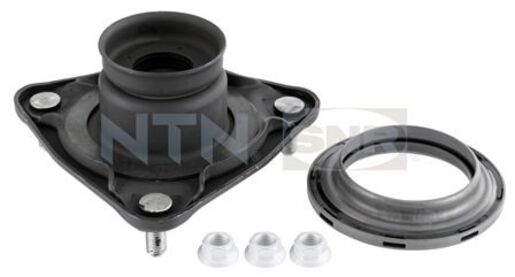

Suspension thrust bearings require an enhanced design to cope with increasingly stringent demands. NTN-SNR's SUSPENSION THRUST BEARING KITS are capable of withstanding such demands and contain all the elements for a complete and effective replacement.

Downloads

Technical datasheet

KitThis kit contains the following reference(s)- BLF- EDS (x3)- AP
PLEASE LOGIN to add products to your basket
Contact us
CHARACTERISTICS
NTN-SNR recommends Hazet tool4910/13 + 4915/15
Number of components5
Recommended toolClas : OM 1112, Clas : OP 3231, Hazet : 4915/15
Weight1,34 kg



ManufacturerReferenceHYUNDAI54610-2H200KIA54610-2H200HYUNDAI54610-2H300KIA54612-2C000HYUNDAI54612-2C000



BrandModelGenerationDatePositionLocationHYUNDAIElantraElantra10/2006 => 04/2011Left / RightFRONTHYUNDAIi30i3002/2007 => 06/2012Left / RightFRONTHYUNDAIi30i30 (CZE)10/2008 => 06/2012Left / RightFRONTKIACeedCeed07/2006 => 10/2009Left / RightFRONTKIACeedCeed FL07/2009 => 08/2010Left / RightFRONT
