Brake Disc Hub Kits

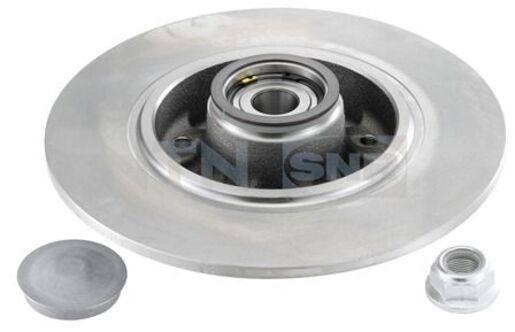

KF155.103U - SNR

KF155.103U
Reference KF155.103U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This kit contains the following reference(s)

  • Protection cap
  • Cap
  • Nut
  • Encoder
  • Unit wheel bearings
  • Brake disc
  • Ring

Documentation

Product information

CHARACTERISTICS
With integrated bearing1
Internal diameter n°125 mm
Number of holes5
Minimum thickness7 mm
Hole bore12 mm
Tightening torque 1280 N-m
Width 186 mm
Epaisseur du disque de frein8 mm
External diameter 3260 mm
Recommended toolClas : OM8154
Bearing typeFC
Disc typePlein
Weight6,727 kg

Automotive Compatibility

BrandModelGenerationDatePositionLocationRenaultFLUENCEFLUENCE => RearLeftRenaultFLUENCEFLUENCE10/2009 => 03/2013RearLeft,RightRenaultFLUENCEFLUENCE12/2012 => 08/2015Train arrièreDroit,GaucheRenaultFLUENCEFLUENCE 1 => Rear-RenaultFLUENCEFLUENCE 110/2009 => 08/2015RearDroit,GaucheRenaultFLUENCEFLUENCE 110/2009 => 08/2015RearGauche,DroitRenaultFLUENCEFLUENCE 2 => Rear-RenaultFLUENCEFLUENCE 2 => Train arrière-RenaultFLUENCEFLUENCE 210/2009 => 08/2015RearDroit,GaucheRenaultFLUENCEFLUENCE 210/2009 => 08/2015RearGauche,DroitRenaultMEGANEMEGANE => RearLeftRenaultMEGANEMEGANE11/2008 => 12/2013Train arrièreRight,LeftRenaultMEGANEMEGANE III => Rear-RenaultMEGANEMEGANE III => RearLeftRenaultMEGANEMEGANE III => Train arrière-RenaultMEGANEMEGANE III09/2008 => 03/2016RearDroit,GaucheRenaultMEGANEMEGANE III09/2008 => 03/2016Train arrièreLeft,RightRenaultMEGANEMEGANE III09/2008 => 06/2016RearLeft,RightRenaultMEGANEMEGANE III09/2008 => 06/2016Train arrièreDroit,GaucheRenaultMEGANEMEGANE IV08/2013 => 06/2016RearLeft,Right
