NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:
- A range of unrivalled depth that has been developed in response to the needs of the market.
- Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.

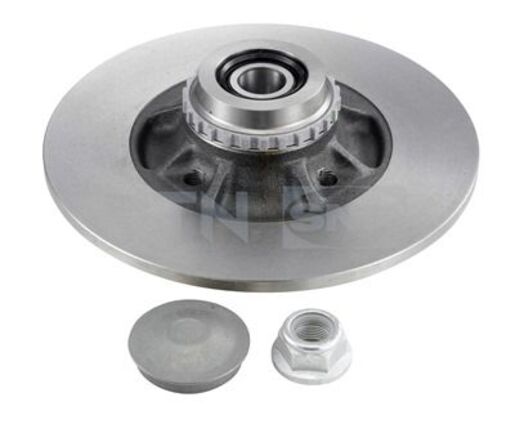

- A complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.
This kit contains the following reference(s)
- FC.12784.S03
- Cap
- Ring
- Brake disc
- Miscellaneous
- Nut
Log in
To add this product to your basketDownloads
No document available
| CHARACTERISTICS | |
|---|---|
| With integrated wheel bearing | Avec roulement de roue intégré |
| With encoder with gear | Avec |
| Tightening torque 1 | 175 N-m |
| External diameter 3 | 237 mm |
| Internal diameter n°1 | 25 mm |
| Hole bore | 12 mm |
| Type disque de frein : plein | X |
| Minimum thickness | 7 mm |
| Epaisseur du disque de frein | 8 mm |
| Width 1 | 74 mm |
| Number of holes | 4 |
| Nb of poles | 26 |
| Recommended tool | Clas : OM4217, Clas : OM8154 |
| Weight | 4,855 kg |
| Bearing type | FC |
