Brake Disc Hub Kits

KF155.115U - SNR

KF155.115U
Reference KF155.115U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.

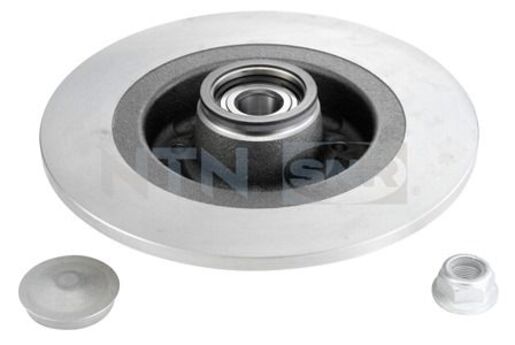

  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This kit contains the following reference(s)

  • FC.41288.S04
  • Cap
  • Encoder
  • Nut
  • Brake disc
  • Protection cap
  • Ring

Documentation

Product information

CHARACTERISTICS
With integrated bearing1
Weight7,015 kg
Disc typePlein
Internal diameter n°125 mm
Number of holes5
Hole bore12 mm
Tightening torque 1220 N-m
Minimum thickness9 mm
Width 181 mm
Epaisseur du disque de frein10 mm
External diameter 3270 mm
Recommended toolClas : OM8154
Bearing typeFC

Automotive Compatibility

BrandModelGenerationDatePositionLocationRenaultMEGANE IIMEGANE II12/2005 => 09/2008Train arrièreDroit,GaucheRenaultMEGANE IIMEGANE II12/2005 => 06/2009RearDroit,GaucheRenaultMEGANE IIMEGANE II12/2005 => 06/2009RearGauche,DroitRenaultSCENICSCENIC II12/2005 => 03/2009RearDroit,GaucheRenaultSCENICSCENIC II12/2005 => 03/2009Train arrièreDroit,Gauche
