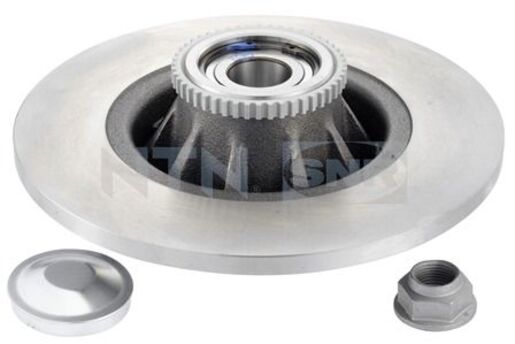

KF155.70U - SNR

KF155.70U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - FC.40772.S03 - BOU - CIR - DIV - ECR - DFR
PLEASE LOGIN to add products to your basket
Contact us
CHARACTERISTICS
With integrated wheel bearingAvec roulement de roue intégré
With encoder with gearAvec
Tightening torque 1280 N-m
External diameter 3280 mm
Internal diameter n°135 mm
Hole bore14 mm
Type disque de frein : pleinX
Minimum thickness10 mm
Epaisseur du disque de frein10 mm
Width 198 mm
Number of holes5
Nb of poles48
Recommended toolClas : OM 4217, Clas : OM 8154, Hazet : 4970/9
Weight9,69 kg
Bearing typeFC



ManufacturerReferenceNISSAN43206-00QAEOPEL4408276OPEL4411910OPEL4413736OPEL4414633RENAULT SAS77 11 130 076RENAULT SAS82 00 228 610OPEL91159916VAUXHALL91166212VAUXHALL9316125VAUXHALL93850649



BrandModelGenerationDatePositionLocationNISSANPrimastarPrimastar (X83)08/2002 => 08/2006Left / RightREARNISSANPrimastarPrimastar FL (X83)08/2006 => 09/2016Left / RightREAROPELVivaroVivaro A04/2001 => 06/2006Left / RightREAROPELVivaroVivaro A FL06/2006 => 09/2014Left / RightREARRENAULTTraficTrafic II03/2001 => 06/2006Left / RightREARRENAULTTraficTrafic II FL06/2006 => 09/2014Left / RightREARVAUXHALLVivaroVivaro A07/2001 => 05/2006Left / RightREARVAUXHALLVivaroVivaro A FL06/2006 => 09/2014Left / RightREAR
