Brake Disc Hub Kits

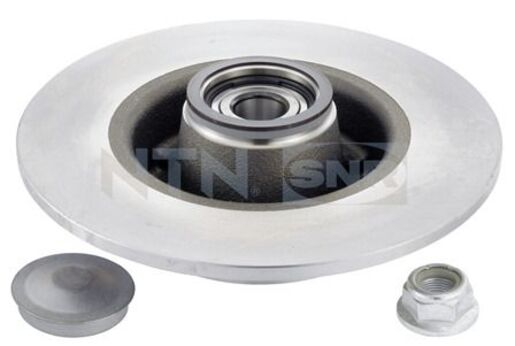

KF155.77U - SNR

KF155.77U
Reference KF155.77U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • A complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This kit contains the following reference(s)

  • FC.40858.S03
  • Protection cap
  • Encoder
  • Nut
  • Cap
  • Brake disc
  • Ring

Documentation

Product information

CHARACTERISTICS
Internal diameter n°1 (wheel)25 mm
Minimum thickness7 mm
Bearing typeFC
Width 1 (wheel)82 mm
Disc typePlein
Recommended tool (Wheel)Clas : OM8154
Number of holes4
Hole bore12 mm
Tightening torque 1175 N-m
Brake disc thickness8 mm
External diameter 3240 mm
Weight5,288 kg

OE Equivalents

ManufacturerReferenceRenault82 00 645 712Renault8200038252

Automotive Compatibility

BrandModelGenerationDatePositionLocationDaciaSANDEROSANDERO II => Rear-DaciaSANDEROSANDERO II => RearRight,LeftRenaultClioCLIO III => RearRight,LeftRenaultClioClio => -Right,LeftRenaultClioClio => RearRight,LeftRenaultClioClio08/2005 => 03/2009RearLeft,RightRenaultMEGANE IIMEGANE II => -Right,LeftRenaultMEGANE IIMEGANE II => RearRight,LeftRenaultMEGANE IIMEGANE II08/2002 => 08/2006RearLeft,RightRenaultMEGANE II SaloonMEGANE II Saloon => RearRight,LeftRenaultMODUSMODUS12/2008 => 10/2010RearLeft,RightRenaultMODUSMODUS 1 => RearRight,LeftRenaultMODUSMODUS 108/2004 => 11/2007RearLeft,RightRenaultMODUSMODUS 2 => RearRight,LeftRenaultMeganeMegane => -Right,LeftRenaultMeganeMegane => RearRight,LeftRenaultMeganeMegane08/2002 => 09/2008RearLeft,RightRenaultSANDERO/STEPWAY IISANDERO/STEPWAY II => RearRight,LeftRenaultTWINGOTWINGO II05/2008 => 09/2014RearRight,LeftRenaultWINDWIND06/2010 => 12/2013RearRight,Left
