Brake Disc Hub Kits

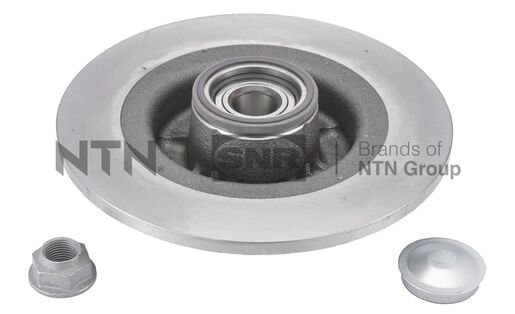

KF155.79U - SNR

Reference KF155.79U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This kit contains the following reference(s)

  • FC.40696.S12
  • Ring
  • Cap
  • Nut
  • Encoder
  • Protection cap
  • Brake disc

Documentation

Product information

CHARACTERISTICS
With integrated bearing1
Disc typePlein
Number of holes4
Internal diameter n°130 mm
Width 184 mm
Hole bore12 mm
Tightening torque 1280 N-m
Minimum thickness9 mm
Epaisseur du disque de frein11 mm
External diameter 3274 mm
Recommended toolClas : OM8154
Bearing typeFC
Fitting positionArrière gauche
Weight7,66 kg

Automotive Compatibility

BrandModelGenerationDatePositionLocationRenaultGRANDGRAND09/2005 => 10/2009Train arrièreLeft,RightRenaultSCENICSCENIC => Train arrièreGaucheRenaultSCENICSCENIC II => Train arrière-RenaultSCENICSCENIC II02/2004 => 07/2009RearLeft,RightRenaultSCENICSCENIC II02/2004 => 07/2009Train arrièreLeft,RightRenaultSCENICSCENIC II02/2004 => 10/2009Train arrièreDroit,GaucheRenaultSCENICSCENIC II05/2005 => 03/2009RearDroit,Gauche
