Brake Disc Hub Kits

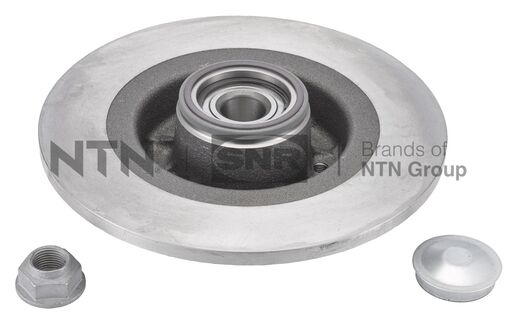

KF155.81U - SNR

Reference KF155.81U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This kit contains the following reference(s)

  • FC.40696.S12
  • Cap
  • Ring
  • Nut
  • Encoder
  • Protection cap
  • Brake disc

Documentation

Product information

CHARACTERISTICS
With integrated bearing1
Disc typePlein
Internal diameter n°130 mm
Number of holes5
Width 184 mm
Hole bore12 mm
Tightening torque 1280 N-m
Minimum thickness9 mm
Epaisseur du disque de frein11 mm
External diameter 3274 mm
Recommended toolClas : OM8154
Bearing typeFC
Fitting positionArrière gauche
Weight7,732 kg

Automotive Compatibility

BrandModelGenerationDatePositionLocationRenaultLAGUNALAGUNA => Train arrièreLeftRenaultLAGUNALAGUNA12/2000 => 08/2007Train arrièreLeft,RightRenaultLAGUNALAGUNA II => RearLeft,RightRenaultLAGUNALAGUNA II => Train arrièreLeft,RightRenaultLAGUNALAGUNA II12/2000 => 08/2007RearDroit,GaucheRenaultLAGUNALAGUNA II12/2000 => 08/2007RearGauche,DroitRenaultLAGUNALAGUNA II12/2000 => 08/2007Train arrièreDroit,GaucheRenaultLAGUNALAGUNA II12/2000 => 08/2007Train arrièreRight,LeftRenaultSCENICSCENIC II12/2005 => 03/2009Train arrièreLeft,Right
