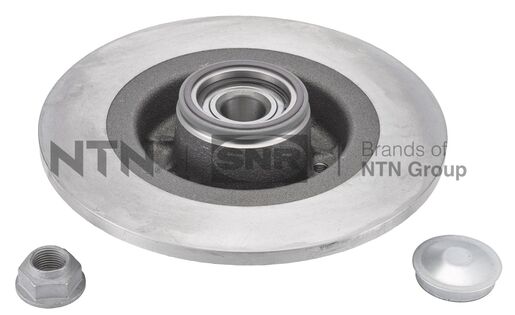

KF155.81U - SNR


NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.


Technical datasheet

KitThis kit contains the following reference(s)- FC.40696.S12- ABR- BOU- CIR- COD- DFR- ECR
PLEASE LOGIN to add products to your basket
Contact us
With integrated wheel bearingAvec roulement de roue intégré
With integrated sensor ringAvec
Tightening torque 1280 N-m
External diameter 3274 mm
Internal diameter n°130 mm
Hole bore12 mm
Type disque de frein : pleinX
Minimum thickness9 mm
Epaisseur du disque de frein11 mm
Width 184 mm
Number of holes5
Recommended toolClas : OM 4217, Clas : OM 8154
Weight7,732 kg
Bearing typeFC


ManufacturerReferenceRENAULT SAS77 01 472 838RENAULT SAS77 01 713 008RENAULT SAS82 00 367 094RENAULT SAS82 00 655 249


BrandModelGenerationDatePositionLocationRENAULTLagunaLaguna II (BG0)12/2000 => 01/2005Left / RightREARRENAULTLagunaLaguna II Phase 202/2005 => 08/2007Left / RightREARRENAULTScenicScenic II12/2005 => 03/2009Left / RightREAR
