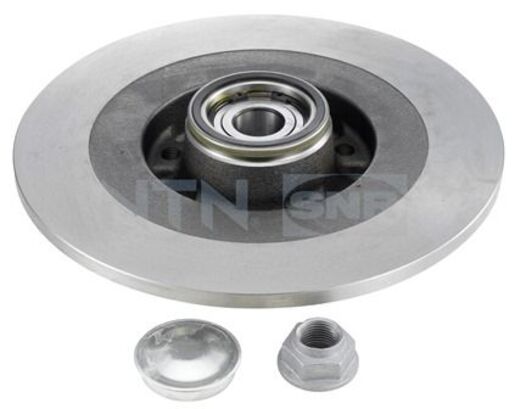

KF155.90U - SNR

KF155.90U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - FC.41722.S01 - ABR - BOU - COD - CIR - ECR - DFR
PLEASE LOGIN to add products to your basket
Contact us
CHARACTERISTICS
With integrated wheel bearingAvec roulement de roue intégré
With integrated sensor ringAvec
Tightening torque 1280 N-m
External diameter 3300 mm
Internal diameter n°130 mm
Hole bore14 mm
Type disque de frein : pleinX
Minimum thickness9 mm
Epaisseur du disque de frein11 mm
Width 181 mm
Number of holes5
Recommended toolClas : OM 4217, Clas : OM 8154, Hazet : 4970/9
Weight8,8 kg
Bearing typeFC



ManufacturerReferenceRENAULT402022291RRENAULT43200-0015RRENAULT432027112R



BrandModelGenerationDatePositionLocationRENAULTLagunaLaguna III09/2007 => 10/2010Left / RightREARRENAULTLagunaLaguna III06/2009 => 10/2010Left / RightFRONTRENAULTLagunaLaguna III Phase 210/2010 => 09/2015Left / RightREARRENAULTLatitudeLatitude10/2010 => 08/2015Left / RightREAR
