Brake Disc Hub Kits

KF155.90U - SNR

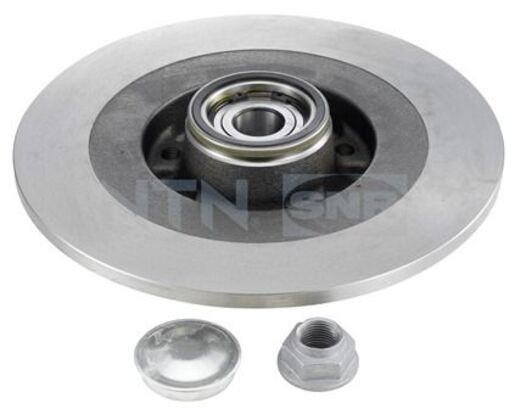

KF155.90U
Reference KF155.90U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This kit contains the following reference(s)

  • FC.41722.S01
  • Encoder
  • Cap
  • Nut
  • Protection cap
  • Brake disc
  • Ring

Documentation

Product information

CHARACTERISTICS
With integrated bearing1
Disc typePlein
Internal diameter n°130 mm
Number of holes5
Tightening torque 1280 N-m
Width 181 mm
Minimum thickness9 mm
Hole bore14 mm
Epaisseur du disque de frein11 mm
External diameter 3300 mm
Recommended toolClas : OM8154
Bearing typeFC
Weight8,81 kg

OE Equivalents

ManufacturerReferenceRenault402022291RRenault432027112R

Automotive Compatibility

BrandModelGenerationDatePositionLocationRenaultLAGUNALAGUNA III09/2007 => 09/2015RearDroit,GaucheRenaultLAGUNALAGUNA III09/2007 => 09/2015RearGauche,DroitRenaultLAGUNALAGUNA III09/2007 => 09/2015RearLeft,RightRenaultLAGUNALAGUNA III09/2007 => 09/2015RearRight,LeftRenaultLAGUNALAGUNA III12/2008 => 09/2015Train arrièreLeft,RightRenaultLAGUNALAGUNA III06/2009 => 09/2015Rear,FrontRight,LeftRenaultLATITUDELATITUDE => RearLeft,RightRenaultSAFRANESAFRANE => RearGaucheRenaultSAFRANESAFRANE => RearLeftRenaultSAFRANESAFRANE => Train arrièreGaucheRenaultTALISMANTALISMAN => Train arrièreLeft
