Brake Disc Hub Kits

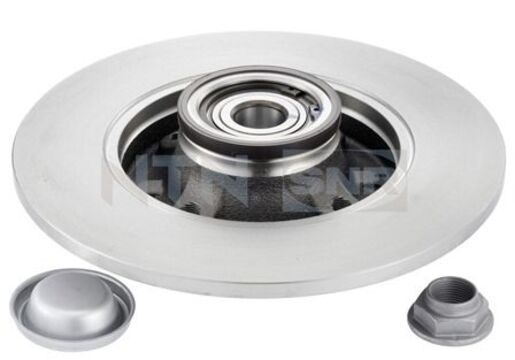

KF159.48U - SNR

KF159.48U
Reference KF159.48U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This kit contains the following reference(s)

  • FC.41245
  • Cap
  • Nut
  • Protection cap
  • Ring
  • Brake disc
  • Encoder

Documentation

Product information

CHARACTERISTICS
With integrated bearing1
Disc typePlein
Internal diameter n°125 mm
Number of holes4
Tightening torque 170 N-m
Tightening angle45 °
Minimum thickness7 mm
Hole bore12 mm
Width 168 mm
Epaisseur du disque de frein9 mm
External diameter 3250 mm
Bearing typeFC
Recommended toolClas : OM8154
Fitting positionArrière gauche
Weight5,56 kg

Automotive Compatibility

BrandModelGenerationDatePositionLocationCitroenC4C4 => RearGaucheCitroenC4 IC4 I => 08/2006RearDroit,GaucheCitroenC4 IC4 I => 08/2006RearLeft,RightCitroenC4 IC4 I => 08/2006RearRight,LeftPeugeot307307 => RearGauchePeugeot307307 => Train arrièreGauchePeugeot307307 => Train arrièreLeftPeugeot30730712/2003 => 02/2005RearGauche,DroitPeugeot30730705/2005 => 08/2006Train arrièreDroit,GauchePeugeot307307 1 => 08/2006RearLeft,RightPeugeot307307 1 => 08/2006Train arrièreLeft,RightPeugeot307307 2 => 08/2006RearLeft,RightPeugeot307 CC307 CC => Train arrièreGauchePeugeot307 SW307 SW => RearGauchePeugeot307 SW Estate Van307 SW Estate Van => Train arrièreLeft
