NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:
- A range of unrivalled depth that has been developed in response to the needs of the market.
- Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.

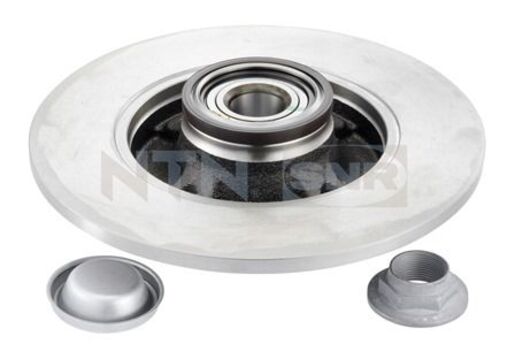

- A complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.
Technical datasheet
| CHARACTERISTICS | |
|---|---|
| With integrated wheel bearing | Avec roulement de roue intégré |
| With integrated sensor ring | Avec |
| Tightening torque 1 | 300 N-m |
| External diameter 3 | 250 mm |
| Internal diameter n°1 | 30 mm |
| Hole bore | 12 mm |
| Type disque de frein : plein | X |
| Minimum thickness | 7 mm |
| Epaisseur du disque de frein | 9 mm |
| Width 1 | 67 mm |
| Number of holes | 4 |
| Recommended tool | Clas : OM 4217, Clas : OM 8154 |
| Weight | 5,58 kg |
| Not coated | No coated disc |
| Bearing type | FC |
