Brake Disc Hub Kits

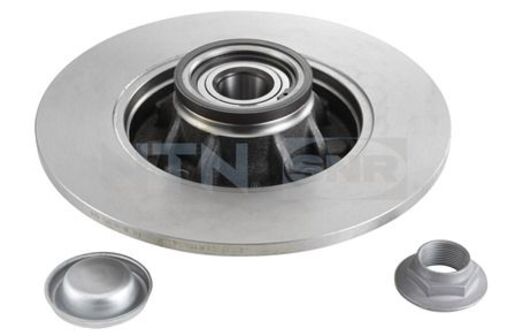

KF159.54U - SNR

KF159.54U
Reference KF159.54U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This kit contains the following reference(s)

  • FC.41394
  • Protection cap
  • Ring
  • Nut
  • Cap
  • Encoder
  • Brake disc

Documentation

Product information

CHARACTERISTICS
With integrated bearing1
CoatedOui
Disc typePlein
Number of holes4
Internal diameter n°130 mm
Hole bore12 mm
Tightening torque 1300 N-m
Minimum thickness8 mm
Width 173 mm
External diameter 3249 mm
Epaisseur du disque de frein9 mm
Recommended toolClas : OM8154
Bearing typeFC
Weight5,86 kg
Fitting positionArrière gauche

OE Equivalents

ManufacturerReferencePeugeot, Citroen4249.65

Automotive Compatibility

BrandModelGenerationDatePositionLocationCitroenC4 IC4 I => Train arrièreLeft,RightCitroenC4 IIC4 II => RearGaucheCitroenC4 IIC4 II => Train arrièreGaucheCitroenC4 IIC4 II => Train arrièreLeftCitroenC4 IIC4 II => Train arrièreLeft,RightDSDS4DS4 I => RearDroit,GaucheDSDS4DS4 I => RearGaucheDSDS4DS4 I03/2011 => 04/2018Train arrièreDroit,GaucheDSDS4DS4 I07/2014 => 04/2018Train arrièreLeft,RightDSDS4DS4 I10/2014 => 04/2018RearLeft,RightDSDS4DS4 I08/2015 => 04/2018RearRight,LeftDSDS4DS4 I08/2015 => 04/2018Train arrièreGauche,DroitPeugeot30830802/2009 => 02/2015RearRight,LeftPeugeot308 I308 I => RearDroit,GauchePeugeot308 I308 I => RearGauchePeugeot308 I308 I => Train arrièreDroit,GauchePeugeot308 I308 I08/2007 => 02/2015Train arrièreLeft,Right
