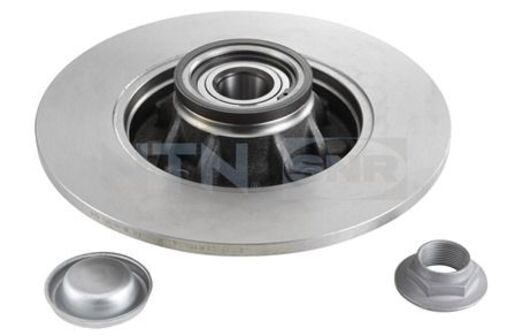

KF159.54U - SNR


NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.


Technical datasheet

KitThis kit contains the following reference(s)- FC.41394- BOU- ABR- CIR- COD- ECR- DFR
PLEASE LOGIN to add products to your basket
Contact us
With integrated wheel bearingAvec roulement de roue intégré
With integrated sensor ringAvec
Tightening torque 1300 N-m
External diameter 3249 mm
Internal diameter n°130 mm
Hole bore12 mm
Type disque de frein : pleinX
Minimum thickness8 mm
Epaisseur du disque de frein9 mm
Width 173 mm
Number of holes4
Recommended toolClas : OM 4217, Clas : OM 8154
Weight5,86 kg
Not coatedNo coated disc
Bearing typeFC




BrandModelGenerationDatePositionLocationCITROENDS4DS403/2011 => 09/2015Left / RightREARDSDS4DS408/2015 => 04/2018Left / RightREARPEUGEOT308308 (T7)08/2007 => 02/2015Left / RightREAR
