Brake Disc Hub Kits

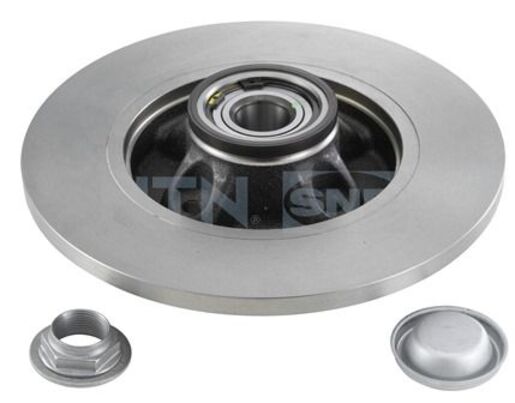

KF159.60U - SNR

KF159.60U
Reference KF159.60U

NTN-SNR is rolling out its expertise in the BRAKE DISC KITS range:

  • A range of unrivalled depth that has been developed in response to the needs of the market.
  • Safety: the brake disc is assembled with the wheel bearing at NTN-SNR's sites to guarantee superlative quality and safety.
  • A complete product: each kit comprises a brake disc with an integrated bearing, as well as the associated components needed to fit the replacement.

This kit contains the following reference(s)

  • FC.41394
  • Cap
  • Ring
  • Protection cap
  • Nut
  • Encoder
  • Brake disc

Documentation

Product information

CHARACTERISTICS
Internal diameter n°1 (wheel)30 mm
Minimum thickness10 mm
Bearing typeFC
With integrated bearing1
Width 1 (wheel)73 mm
CoatedOui
Disc typePlein
Recommended tool (Wheel)Clas : OM8154
Fitting positionArrière droit
Weight7,295 kg
Number of holes4
Brake disc thickness12 mm
Tightening torque 1300 N-m
External diameter 3268 mm

OE Equivalents

ManufacturerReferencePeugeot, Citroen9651556880

Automotive Compatibility

BrandModelGenerationDatePositionLocationCitroenBerlingoBERLINGO II => RearLeft,RightCitroenBerlingoBERLINGO II => RearRight,LeftCitroenBerlingoBerlingo => -Right,LeftCitroenBerlingoBerlingo04/2008 => 03/2015RearLeft,RightCitroenC4C4 => -Right,LeftCitroenC4 GRAND PICASSO IC4 GRAND PICASSO I => -Right,LeftCitroenC4 IC4 I => -Right,LeftCitroenC4 IC4 I => RearLeft,RightCitroenC4 IC4 I => RearRight,LeftCitroenC4 IIC4 II => -Right,LeftCitroenC4 IIC4 II => RearLeft,RightCitroenC4 IIC4 II => RearRight,LeftCitroenC4 PICASSO I MPVC4 PICASSO I MPV => RearRight,LeftCitroenC4 PICASSO IIC4 PICASSO II => RearRight,LeftCitroenDS5DS5 => RearRight,LeftDSDS4DS4 I => RearLeft,RightDSDS4DS4 I => RearRight,LeftDSDS5DS5 1 => RearRight,LeftDSDS5DS5 109/2011 => 04/2015RearLeft,RightDSDS5DS5 2 => RearLeft,RightDSDS5DS5 2 => RearRight,LeftPeugeot30083008 => RearRight,LeftPeugeot30083008 I => RearLeft,RightPeugeot30083008 I => RearRight,LeftPeugeot308308 => -Right,LeftPeugeot30830809/2009 => 12/2013RearRight,LeftPeugeot30830803/2010 => 11/2010RearLeft,RightPeugeot308 I308 I => -Right,LeftPeugeot308 I308 I => RearLeft,RightPeugeot308 I308 I => RearRight,LeftPeugeot50085008 => -Right,LeftPeugeot50085008 I => RearLeft,RightPeugeot50085008 I => RearRight,LeftPeugeotPartnerPARTNER I04/2011 => 03/2015RearRight,LeftPeugeotPartnerPARTNER II => RearLeft,RightPeugeotPartnerPARTNER II => RearRight,LeftPeugeotPARTNER ORIGIN MPVPARTNER ORIGIN MPV => RearRight,LeftPeugeotPartnerPartner => -Right,LeftPeugeotPartnerPartner => RearRight,LeftPeugeotPartnerPartner04/2008 => 03/2015RearLeft,Right
