KJ32X38X20S - NTN

KJ32X38X20S

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandNTN

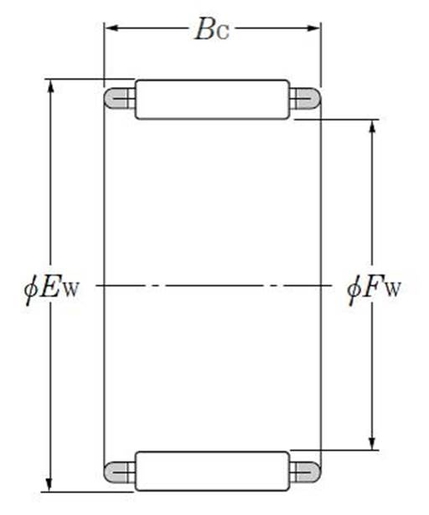

Fw - Under rollers diameter32 mm
Ew - Upper rollers diameter38 mm
Bc - Cage Width20 mm
Mass0,031 kg
Product classification image
PRODUCT PERFORMANCE
Cr - Dynamic load rating25,1 kN
C0r - Static load rating41 kN
Nlim - Grease lubrication limit speed8500 tr/min
Nlim - Oil lubrication limit speed13000 tr/min
Tmin - Min operating temperature-20 °C
Tmax - Max operating temperature120 °C
ABUTMENT
b - Raceway width20 mm
