Nuts

KML40 - SNR

KML40

Documentation

Product information

PRODUCT DEFINITION
BrandSNR

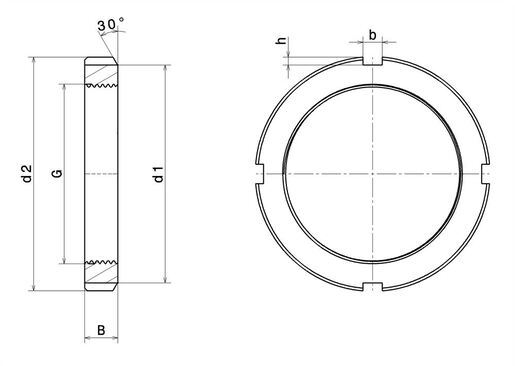

G - Thread designationM200X3
d2 - Outer diameter of locknut240 mm
B - Nut width29 mm
d1 - Outer diameter of the locking surface of the nut222 mm
Chamfer angle of the nut30 °
b - Notch width18 mm
h - Notch depth8 mm
Mass2,98 kg
undefined
TECHNICAL CHARACTERISTICS
Designation of the associated blocking deviceMBL40
