Product information

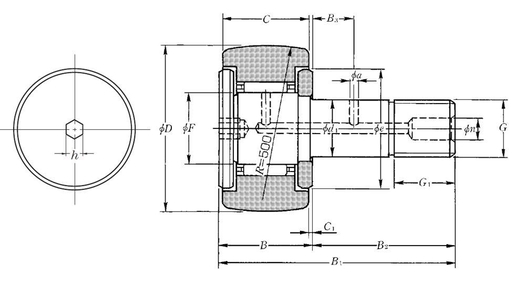

| PRODUCT DEFINITION | |
|---|---|
| Brand | NTN |
| D - External diameter | 10 mm |
| d1 - Stud diameter | 3 mm |
| C - Width of bearing, drawn cup or outer ring | 7 mm |
| F - Under roller diameter | 4 mm |
| B - Bearing/Inner ring width | 8 mm |
| B1 - Total stud length | 17 mm |
| B2 - Stud rod length | 9 mm |
| G - Stud thread designation | M3X0.5 |
| G1 - Thread length of the stud | 5 mm |
| C1 - Distance between roller face and washer face | 0,5 mm |
| e - Inlet diameter of roller or washer | 7 mm |
| h - Hexagonal hole | 2,5 mm |
| R - Track roller radius | 500 mm |
| Maximum tightening torque | 0,5 N-m |
| Bearing with/without cage | Avec |
| Radial clearance class | CN |
| Precision class | P0 |
| Mass | 0,005 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| Cr - Dynamic load rating | 1,64 kN |
| C0r - Static load rating | 1,27 kN |
| Track load capacity spherical outer ring | 0,56 kN |
| N lim - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
