KRV32LLH/3AS - NTN

KRV32LLH/3AS

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

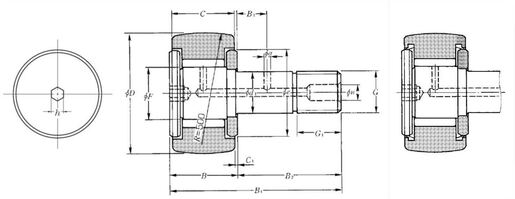

PRODUCT DIMENSIONS

External diameter (D) 32 mm
Stud diameter (d1) 12 mm
Width of bearing, drawn cup or outer ring (C) 14 mm
Under roller diameter F 15 mm
Bearing/Inner ring width (B) 15 mm
Total stud length (B1) 40 mm
Stud rod length (B2) 25 mm
Stud thread designation (G) M12X1.5
Thread length of the stud (G1) 13 mm
Distance between washer face and radial lub hole. (B3) 6 mm
Distance between roller face and washer face (C1) 0,6 mm
Axial lubrication hole diameter (n) 6 mm
Radial lubrication hole diameter (a) 3 mm
Inlet diameter of roller or washer (e) 23 mm
Hexagonal hole (h) 6 mm
Track roller radius (R) 500 mm
Maximum tightening torque 20 N-m
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Mass 0,1 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Dynamic load rating (Cr) 12 kN
Static load rating (C0r) 20,3 kN
Track load capacity spherical outer ring 2,86 kN
Nlim (grease) 6500 tr/min
Min operating temperature (Tmin) -20 °C
Max operating temperature (Tmax) 100 °C
