MB23 - SNR

MB23

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
PRODUCT DEFINITION
BrandSNR
d3 - Safety washer bore diameter115 mm
d4 - Tooth root diameter137 mm
d5 - Outer diameter of the safety washer159 mm
B7 - Security washer thickness2 mm
M - Distance between inner tab and bore diameter110,5 mm
f - Width of outer teeth12 mm
f1 - Inner tab width12 mm
Mass0,108 kg

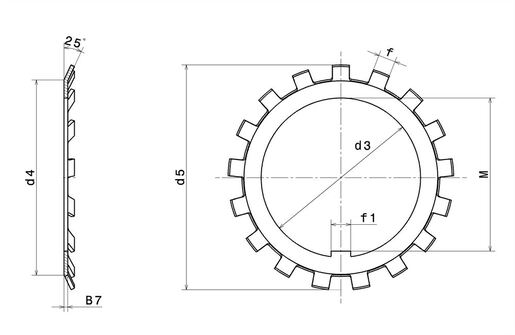

Product classification image
TECHNICAL CHARACTERISTICS
Designation of the associated nutKM23
