MLE71910HVUJ84S - SNR

MLE71910HVUJ84S

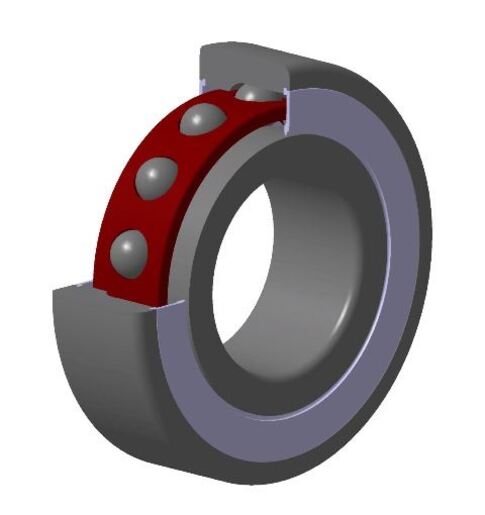

High precision angular contact ball bearing, sealed series ML, laminated resin cage centred on outer ring

In the ball bearing and high precision bearing ranges, the high precision angular contact ball bearing solves the maximum reliability constraints with increased performance in terms of rigidity, speed, capacity and precision. This bearing is recommended for demanding applications in terms of precision such as machine tool spindles. NTN-SNR is getting under ranges dedicated to requirements of speed, sealing, specific greasing, etc.

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

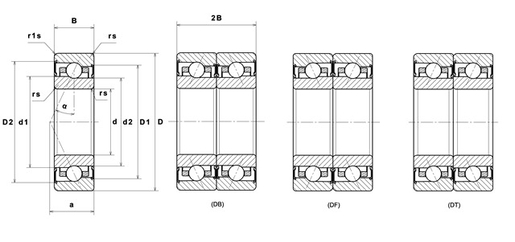

PRODUCT DIMENSIONS

Internal diameter (d) 50 mm
External diameter (D) 72 mm
Bearing/Inner ring width (B) 12 mm
External diameter inner ring d1 56,8 mm
External diameter inner ring (d2) 54,7 mm
Inner diameter outer ring (D1) 66,01 mm
Inner diameter outer ring D2 67,51 mm
Charge load application point a 20 mm
Contact angle α 25 °
Min fillet radius (rs) 0,6 mm
Min fillet radius r1s 0,3 mm
Coefficient f0 8.658
Precision class P4S
Mass 0,129 kg
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load (C) 7,1 kN
Static load (C0) 5,3 kN
Fatigue limit load (Cu) 0,34 kN
Axial displacement K Factor 0.61
Preload level 8
Preload value 180000 kN
Axial rigidity 132 N/µm
Radial rigidity 286 N/µm
Min operating temperature (Tmin) -20 °C
Max operating temperature (Tmax) 120 °C
Nlim (grease) 22000 tr/min
Characteristic cage frequency, FTF 0,464 Hz
Characteristic rolling element frequency, BSF 12,471 Hz
Characteristic outer ring frequency, BPF0 13,916 Hz
Characteristic inner ring frequency, BPFI 16,084 Hz

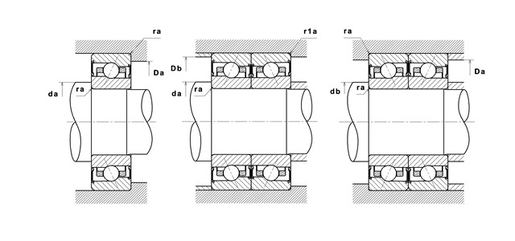

ABUTMENT

Min shoulder diameter IR (da min) 54,5 mm
Min IR shoulder diameter (db min) 54,5 mm
Max shoulder diameter OR (Da max) 67,5 mm
Max OR shoulder diameter (Db max) 67,5 mm
Maxi fillet radius r1a 0,3 mm
Max shaft & housing fillet radius (ra max) 0,6 mm
Product classification image
Calcul factors image
