NA4906LL/3AS - NTN

NA4906LL/3AS

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

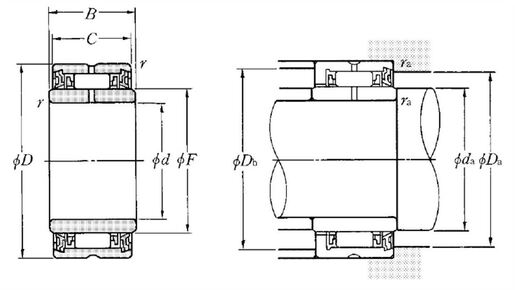

PRODUCT DEFINITION

d - Internal diameter 30 mm
D - External diameter 47 mm
B - Bearing/Inner ring width 18 mm
C - Width of bearing, drawn cup or outer ring 17 mm
F - Under roller diameter 35 mm
rs - Min fillet radius 0,3 mm
Lubrication hole on outer ring Yes
k - Hole diameter 3 mm
Lubrication hole on inner ring Yes
Radial clearance class CN
Precision class P0
Mass 0,107 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 18 kN
C0r - Static load rating 27,4 kN
Nlim - Grease lubrication limit speed 5500 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C

ABUTMENT

da min - Min shoulder diameter IR 32 mm
Da max - Max shoulder diameter OR 38 mm
Db max - Max OR shoulder diameter 45 mm
ras max - Max shaft & housing fillet radius 0,3 mm
