NA6918R - NTN

NA6918R

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

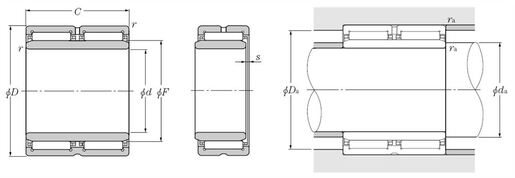

PRODUCT DEFINITION

d - Internal diameter 90 mm
D - External diameter 125 mm
C - Width of bearing, drawn cup or outer ring 63 mm
F - Under roller diameter 105 mm
rs - Min fillet radius 1,1 mm
s - Max axial offset 1 mm
Lubrication hole on outer ring Yes
k - Hole diameter 3,5 mm
Lubrication hole on inner ring No
Radial clearance class CN
Precision class P0
Mass 1,24 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 175 kN
C0r - Static load rating 425 kN
Nlim - Grease lubrication limit speed 2500 tr/min
Nlim - Oil lubrication limit speed 3800 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C

ABUTMENT

da min - Min shoulder diameter IR 96,5 mm
Da max - Max shoulder diameter OR 109 mm
ras max - Max shaft & housing fillet radius 1,1 mm
