Needle roller bearing, roller follower, with cage, with inner ring, spherical outer ring
3D file
Technical datasheet

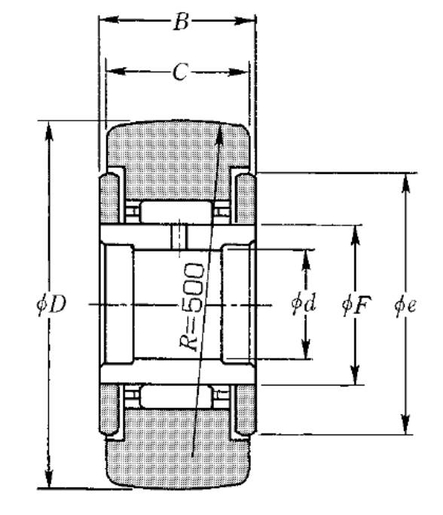

| PRODUCT DEFINITION | |
|---|---|
| Brand | NTN |
| d - Internal diameter | 15 mm |
| D - External diameter | 35 mm |
| C - Width of bearing, drawn cup or outer ring | 18 mm |
| F - Under roller diameter | 20 mm |
| B - Bearing/Inner ring width | 19 mm |
| e - Inlet diameter of roller or washer | 27 mm |
| R - Track roller radius | 500 mm |
| Bearing with/without cage | With |
| Radial clearance class | CN |
| Precision class | P0 |
| Mass | 0,098 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| Cr - Dynamic load rating | 13,3 kN |
| C0r - Static load rating | 20,8 kN |
| Track load capacity spherical outer ring | 3,2 kN |
| Nlim - Grease lubrication limit speed | 7500 tr/min |
| Nlim - Oil lubrication limit speed | 10000 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
