NATR50 - NTN

NATR50

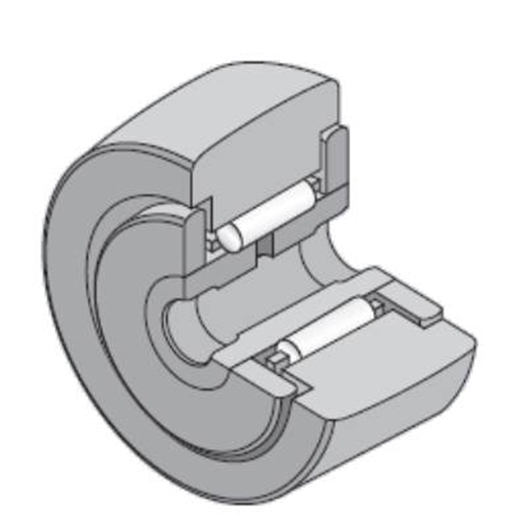

Needle roller bearing, roller follower, with cage, with inner ring, spherical outer ring

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

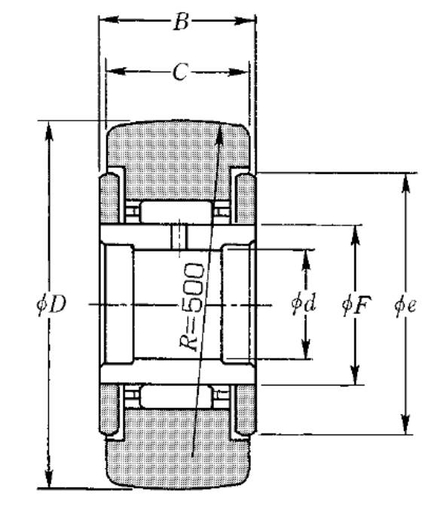

PRODUCT DEFINITION

d - Internal diameter 50 mm
D - External diameter 90 mm
C - Width of bearing, drawn cup or outer ring 30 mm
F - Under roller diameter 60 mm
B - Bearing/Inner ring width 32 mm
e - Inlet diameter of roller or washer 76 mm
R - Track roller radius 500 mm
Bearing with/without cage With
Radial clearance class CN
Precision class P0
Mass 0,96 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Cr - Dynamic load rating 53 kN
C0r - Static load rating 108 kN
Track load capacity spherical outer ring 11,4 kN
Nlim - Grease lubrication limit speed 2500 tr/min
Nlim - Oil lubrication limit speed 3300 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C
