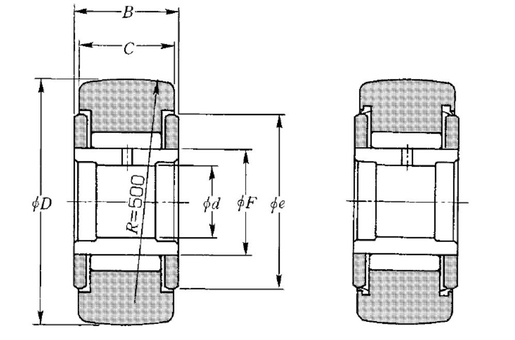

Log in To add this product to your basket Documentation Product information PRODUCT DEFINITION Brand NTN d - Internal diameter 15 mm D - External diameter 35 mm C - Width of bearing, drawn cup or outer ring 18 mm F - Under roller diameter 20 mm B - Bearing/Inner ring width 19 mm e - Inlet diameter of roller or washer 27 mm R - Track roller radius 500 mm Bearing with/without cage Sans Radial clearance class CN Precision class P0 Mass 0,102 kg
PRODUCT PERFORMANCE Cr - Dynamic load rating 18,4 kN C0r - Static load rating 38 kN Track load capacity spherical outer ring 3,2 kN N lim - Grease lubrication limit speed 5000 tr/min Tmin - Min operating temperature -20 °C Tmax - Max operating temperature 100 °C
