NU2214EG15 - SNR

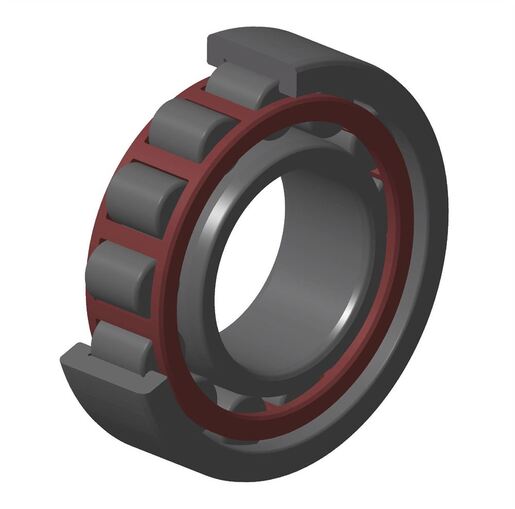

Single row cylindrical roller bearing, floating, separable, polyamide cage

In the cylindrical roller bearing range, the single row roller bearing withstands high radial loads. The standard ISO ranges (NU, N, NJ, NF, NUP, NH, RNU, HJ) are available with different types of cage, bore diameters, shoulder rings.


3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

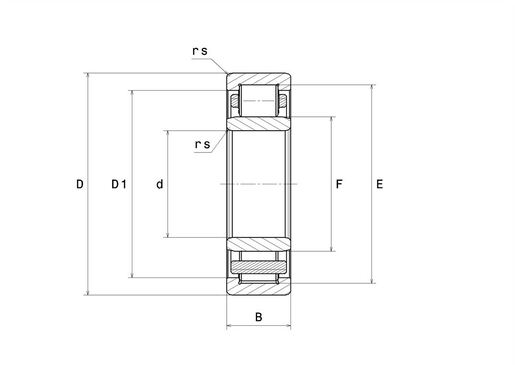

Internal diameter (d) 70 mm
External diameter (D) 125 mm
Bearing/Inner ring width (B) 31 mm
Upper roller diameter E 113,5 mm
Under roller diameter F 83,5 mm
OR flange inner diameter D1 109,4 mm
Min fillet radius (rs) 1,5 mm
Min fillet radius r1s 1,5 mm
Radial clearance class CN
Mass 1,52 kg
Brand SNR
Product classification image


Dynamic load (C) 160 kN
Static load (C0) 202 kN
Fatigue limit load (Cu) 24,6 kN
Reference thermal speed (Nref) 3900 tr/min
Mechanical Limit Speed (Nlim) 6500 tr/min
Nlim (oil) 5400 tr/min
Nlim (grease) 4500 tr/min
Min operating temperature (Tmin) -20 °C
Max operating temperature (Tmax) 120 °C
Characteristic cage frequency, FTF 0,424 Hz
Characteristic rolling element frequency, BSF 6,414 Hz
Characteristic outer ring frequency, BPF0 7,206 Hz
Characteristic inner ring frequency, BPFI 9,794 Hz

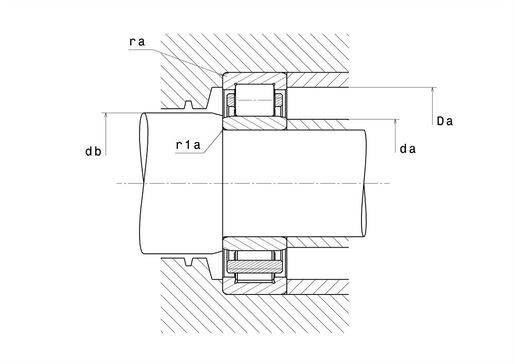

Min shoulder diameter IR (da min) 78 mm
Small face shoulder max diameter da max 82 mm
Max shoulder diameter OR (Da max) 117 mm
Max fillet radius ra max 1,5 mm
Maxi fillet radius r1a 1,5 mm
Product classification image
Calcul factors image
