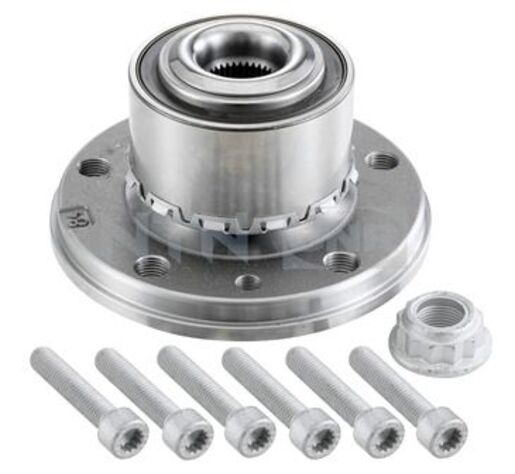

R154.58 - SNR

R154.58

NTN-SNR's expertise is exemplified in the WHEEL BEARING KITS range:

  • An increasingly extensive range to meet all the needs of the market.
  • Kits comprising both bearings and the associated components for a complete and reliable replacement.
  • Original quality parts for guaranteed safety.

Downloads

Technical datasheet

KitThis kit contains the following reference(s) - VIS - ECR - RLT
PLEASE LOGIN to add products to your basket
Contact us
Specs

CHARACTERISTICS

With integrated sensor ring Avec
Tightening torque 1 200 N-m
External diameter 1 85 mm
External diameter 2 143 mm
Internal diameter n°1 30 mm
NTN-SNR recommends Hazet tool 4934-2585/12 + 4930-1 + 4930-2 (Touareg)
NTN-SNR recommends Hazet tool 4934-2585/12 + 4930-1 + 4930-2 + 4934-8507 (Transporter)
Width 1 45 mm
Width 2 102 mm
Number of holes 5
Weight 4,3 kg
Bearing type MGB



Manufacturer
Reference
VOLKSWAGEN 7H0401611D VOLKSWAGEN 7H0401611E VOLKSWAGEN 7H0401611H VOLKSWAGEN 7L0498611



Brand
Model
Generation
Date
Position
Location
VOLKSWAGEN Touareg Touareg I 12/2002 => 08/2003 Left / Right FRONT VOLKSWAGEN Touareg Touareg I 12/2002 => 08/2003 Left / Right REAR VOLKSWAGEN Transporter Transporter (7E/7F) 08/2009 => 07/2015 Left / Right FRONT VOLKSWAGEN Transporter Transporter (7E/7F) 08/2009 => 07/2015 Left / Right REAR VOLKSWAGEN Transporter Transporter (7H/7J) 03/2015 => Left / Right REAR VOLKSWAGEN Transporter Transporter 7J/7H 03/2003 => 07/2003 Left / Right FRONT VOLKSWAGEN Transporter Transporter 7J/7H 03/2003 => 10/2009 Left / Right REAR VOLKSWAGEN Transporter Transporter FL(7H/7J) 06/2019 => Left / Right REAR
